DOOR
MATERIAL		 GLASS SHAPE
& SIZE 		GLASS DESIGN
& CAMING 		# VISIBLE
DOOR PANELS
BMT    - 404 - 331 - 1
DOOR
MATERIAL		 GLASS SHAPE
& SIZE 		GLASS DESIGN
& CAMING 		# VISIBLE
DOOR PANELS
BMTSL

SL = sidelite

- 404 - 331 - 1
DOOR
MATERIAL 		SHAPE
& SIZE 		DESIGN & CAMING
DOOR PANELS
BMT    - 404 - 331 - 1
DOOR
MATERIAL 		SHAPE
& SIZE 		DESIGN & CAMING DOOR PANELS
BMTSL

SL = sidelite

- 404 - 331 - 1

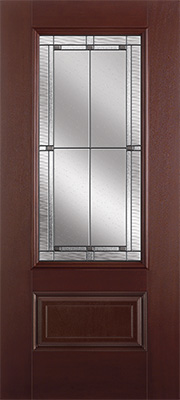

Belleville Mahogany Textured 1 Panel Hollister Door 3/4 Lite with Marco Glass
BMT-404-331-1
(2⁸ 2¹⁰ 3⁰)
Belleville Mahogany Textured Sidelite with Marco Glass
BMTSL-404-331-X
(2⁸ 2¹⁰ 3⁰)

DOOR MATERIAL

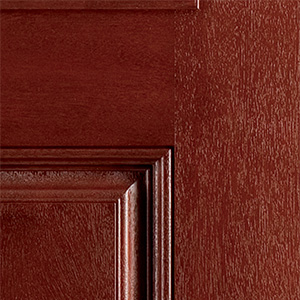

BMT Belleville mahogany fiberglass
BMT Belleville®
mahogany fiberglass
BFT Belleville fir fiberglass
BFT Belleville®
fir fiberglass
BLT Belleville oak fiberglass
BLTBelleville®
oak fiberglass

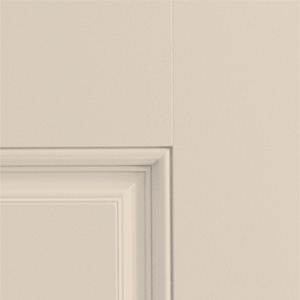

BLS Belleville smooth fiberglass
BLS Belleville®
smooth fiberglass
Barrington Fiberglass BSP Sierra Plank BSN Sierra No Plank BFS Flagstaff
Barrington® Fiberglass
BSP Sierra® Plank
BSN Sierra® No Plank
BFS Flagstaff®

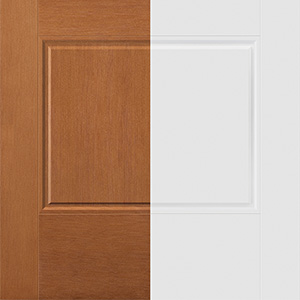

Heritage Series Craftsman fiberglass HFT Fir HGS Smooth
Heritage Series™
Craftsman fiberglass
HFT Fir
HGS Smooth
VistaGrande Flush-Glazed fiberglass HFT Fir HGS Smooth
VistaGrande®
Flush-Glazed fiberglass
HFT Fir
HGS Smooth

GLASS LITE SHAPE & SIZE

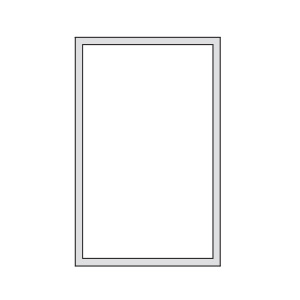

Rectangle Lite
Rectangle Lite
106 22" x 36"
108 20" x 20"
114 14" x 64"
120 20" x 64"
122 22" x 64"
126 26" x 36"
129 8" x 36"
151 8" x 64"
152 7" x 64"
160 20" x 36"
217 22" x 17"
228 22" x 10"
246 24" x 36"
404 22" x 48"
406 24" x 47"
416 28" x 47"
426 26" x 48"
450 8" x 48"
464 24" x 64"
701 24" x 80"
700 28" x 80"
617 8" x 17"
680 8" x 6"
810 22" x 80"
814 14" x 80"
820 20" x 80"
826 26" x 80"
852 8" x 80"
926 26" x 64"

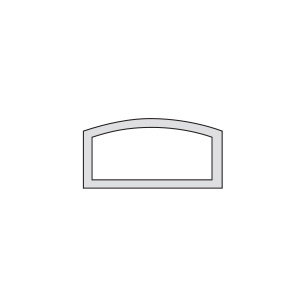

Camber-Top Fan Lite
Camber-Top Fan Lite
135 22" x 10"

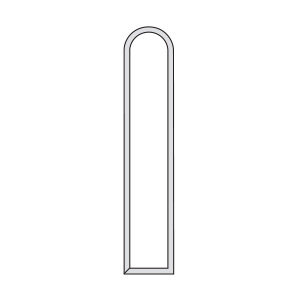

Round-Top Lite
Round-Top Lite
201 8" x 58"
203 8" x 42"

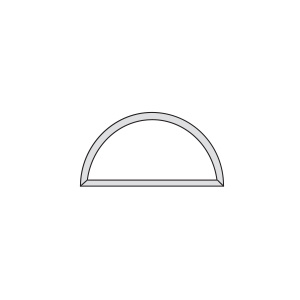

Fan Lite
Fan Lite
135 22" x 10"

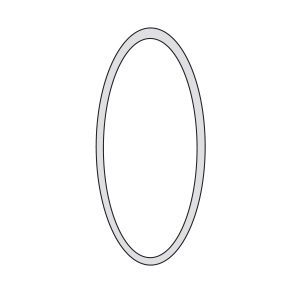

Oval lite
Oval Lite
300 20" x 57"
304 16" x 40"
306 15" x 55"
Camber-Top Lite
Camber-Top Lite
107 22" x 37-1/2"
247 24" x 36"
407 24" x 47"
417 28" x 47"
465 24" x 64"
702 24" x 80"

GLASS DESIGN

21 Adelaide AB
26 Artisan AB
42 Beverly AB
47 Castellon PL
115 Chord T
661 Cruz AB
49 Dahlia WR
113 Double Water T
328 Element AB
312 Frontier AB
52 Harlow AB
918 Iron Springs WR
686 Kordella AB
331 Marco AB
778 Marquise PL
12 Modena PL
366 Naples AB
64 Niagara AB
65 Niagara B
116 Pear T
140 Pearl T
724 Panama B
725 Panama PL
119 Quill T
56 Riverside SE
61 Rooftop T
34 Royston AB
39 Sophia AB
40 Sophia PL
926 Tanglewood WR

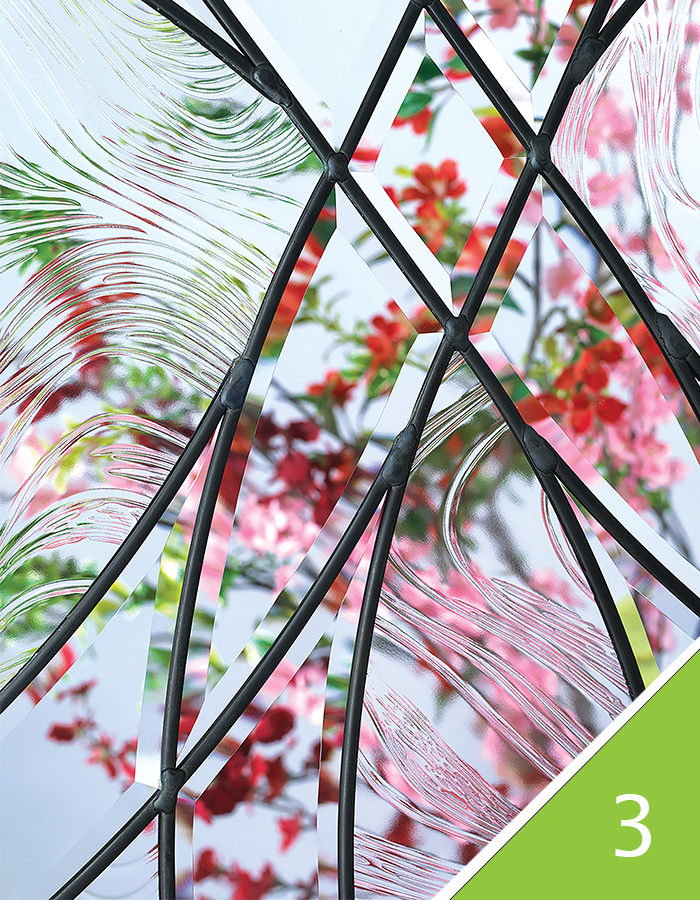

Glass insert close-up

GLASS CAMING & PRIVACY


WR Wrought Iron

AB Antique Black

PL Platinum

B Brass

T Textured

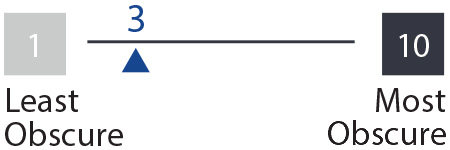

PRIVACY RATING


Privacy Rating shown with a X-Axis from 1 (least obscure) to 10 (most obscure) and a marker on 3

MANUFACTURE

Green 90 degree triangle Masonite logo
Red 90 degree angle triangle Trimlite logo

# VISIBLE DOOR PANELS

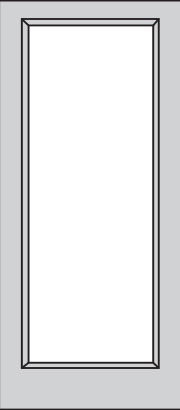

Full lite door- door with no panels
X

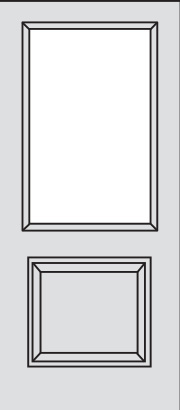

3/4 lite door with 1 panel
1
3/4 lite door with 2 panel
2

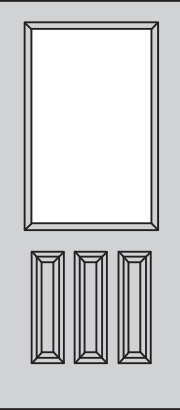

3/4 lite door with 3 panel
3

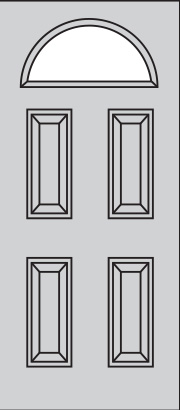

Fan lite 4 panel door
4

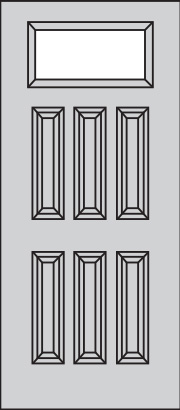

Rectangle top lite 6 panel door
6
Round-top lite 7 panel door
7

Other helpful tools

How do I size my door?
You may also encounter door code that end with a 3 digit number. Here is how to decode it:
6 panel fir fiberglass Bellville door

(BFT-6- 286)

BFT-6-286

Door code

Width

Height
BFT-6 - 2'ft. 8"in. - 6'ft - 8in
Door code Width Height
BFT-6 - 2'ft. 8"in. - 6'ft

Width - The first two digits after the dash represent the width in feet and inches

20X = 2 feet 0 inches
21X = 2 feet 10 inches
22X = 2 feet 2 inches
24X = 2 feet 4 inches
26X = 2 feet 6 inches
28X = 2 feet 8 inches

Height - The last digit after the dash represents the height in feet and inches

xx6 = 6 feet 8 inches (80 inches)
xx7 = 7 feet (84 inches)
xx8 = 8 feet (96 inches)
