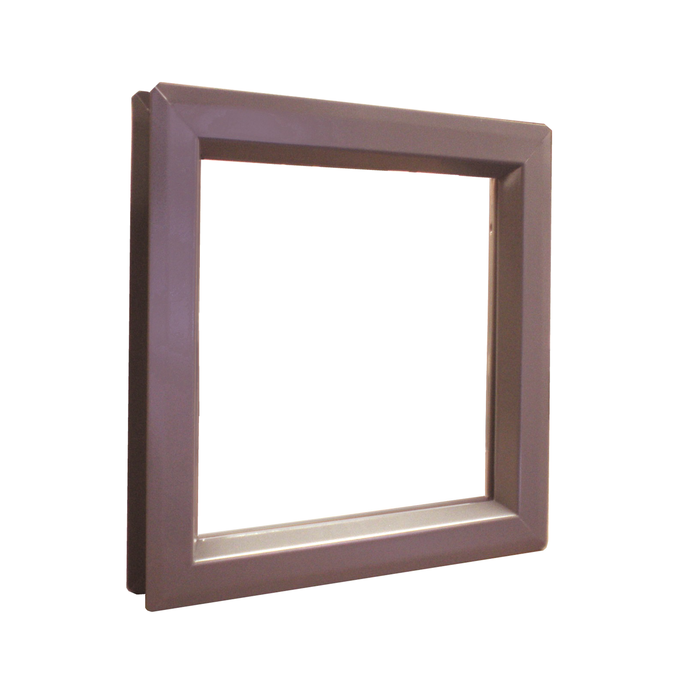

Slimline Vision Lite
Description:
Low profile beveled vision lite for fire rate doors self attaching frame has single sided fasteners
Material - 20 gauge CRS frame. min size 3 “x3”, Max 60"x104".
Construction - 1-¼" trim with radius corners, mitered and welded. Continuous glass retainer, countersunk mounting holes in the bevel on non-corridor side.
Door - For 1-¾" door. For other sizes, see models VLFIG and VLFEZIG
Fasteners #8x1" flathead phillips SMS to match finish. Woodlite has wood veneer plugs covering screw heads.Powder Coat Finishes - Bronze and Gray
Glass - 3/16" - ¼" glazing to be ordered seperately from Glazing Section of catalog. Use fire rated glazing
with Warnock Hersey or UL classification markings for fire rated applications. VIsible lifht is 2" under rough opening size. Glass size is 1" under order size
| Item | (W) | (H) | (T) |
|---|---|---|---|
| VSL1212B | 1' | 1' | |
| VSL1212G | 1' | 1' | |
| VSL1818B | 1' 6" | 1' 6" | |
| VSL1818G | 1' 6" | 1' 6" | |
| VSL1824B | 1' 6" | 2' | |
| VSL1824G | 1' 6" | 2' | |
| VSL1832B | 1' 6" | 2' 8" | |
| VSL1832G | 1' 6" | 2' 8" | |
| VSL2424B | 2' | 2' | |
| VSL2424G | 2' | 2' | |
| VSL2430B | 2' | 2' 6" | |
| VSL2430G | 2' | 2' 6" | |
| VSL2432B | 2' | 2' 8" | |
| VSL2432G | 2' | 2' 8" | |
| VSL2436B | 2' | 3' | |
| VSL2436G | 2' | 3' | |
| VSL2456B | 2' | 4' 8" | |
| VSL2456G | 2' | 4' 8" | |
| VSL2460B | 2' | 5' | |
| VSL2460G | 2' | 5' | |
| VSL2464B | 2' | 5' 4" | |
| VSL2464G | 2' | 5' 4" | |
| VSL2466B | 2' | 5' 6" | |
| VSL2466G | 2' | 5' 6" | |
| VSL535B | 5" | 2' 11" | |
| VSL535G | 5" | 2' 11" | |
| VSL627B | 6" | 2' 3" | |
| VSL627G | 6" | 2' 3" | |
| VSL722B | 7" | 1' 10" | |
| VSL722G | 7" | 1' 10" | |
| VSL832B | 8" | 2' 8" | |
| VSL832G | 8" | 2' 8" |
